Right Angle Planetary Gearbox

Transmission

In the realm of industrial machinery and mechanical systems, the right angle planetary gearbox stands out as a critical component for achieving efficient and compact power transmission. This innovative design combines the benefits of planetary gearing with a right-angle configuration, offering a versatile and robust solution for a wide range of applications.

Understanding the Right Angle Planetary Gearbox

A right angle planetary gearbox is a specialized type of gearbox that uses planetary gears to transmit power at a 90-degree angle. This design offers several advantages over traditional gearboxes, making it an ideal choice for applications where space is limited and high torque output is required.

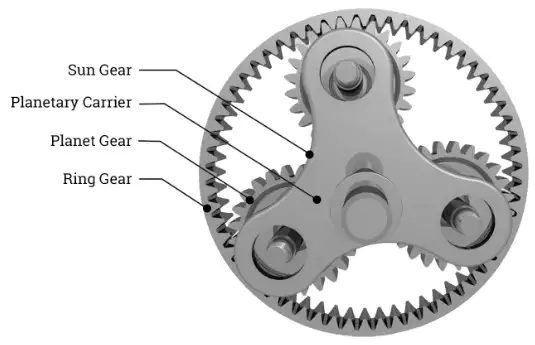

Key Components

1. Sun Gear:
   • The central gear in the planetary system.
   • Acts as the input or output gear, depending on the configuration.
2. Planet Gears:
   • Smaller gears that revolve around the sun gear.
   • Mounted on a carrier that can rotate independently.
   • Mesh with both the sun gear and the ring gear.
3. Ring Gear:
   • A large, ring-shaped gear that surrounds the planet gears.
   • Can be fixed, rotating, or act as an input or output.
4. Carrier:
   • Supports the planet gears and allows them to rotate around the sun gear.
   • The carrier itself can also rotate, providing additional flexibility in the gear ratio.
5. Right Angle Configuration:
   • The gearbox is designed to change the direction of power transmission by 90 degrees.
   • This configuration is achieved through the use of bevel gears or worm gears in combination with the planetary gears.

How It Works

The right angle planetary gearbox operates by converting rotational motion from one axis to another at a 90-degree angle. Here’s a simplified explanation of the process:

1. Input Rotation:
   • The input shaft, typically connected to the sun gear, receives rotational motion from the motor or other power source.

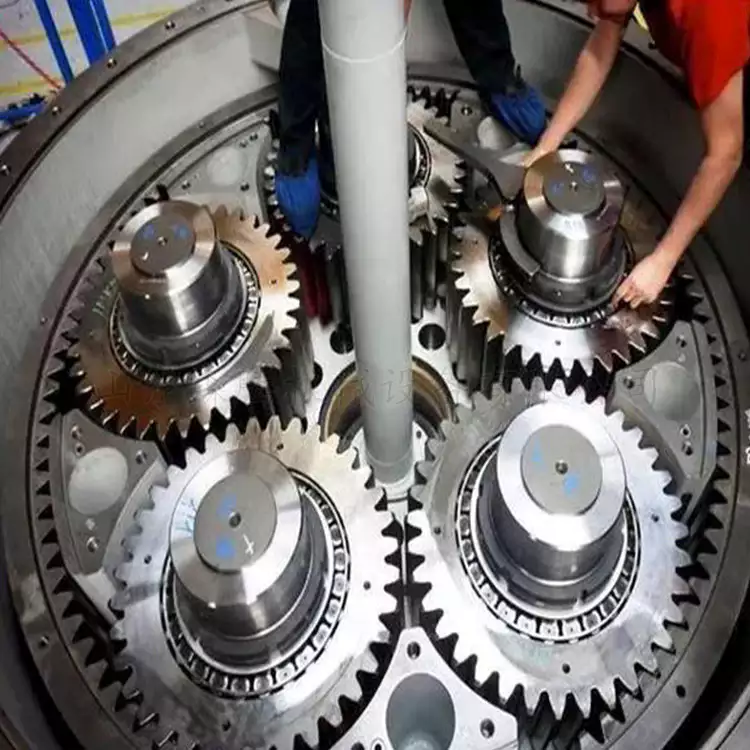

2. Planetary Gear Interaction:
   • The sun gear rotates, causing the planet gears to revolve around it while also rotating on their own axes.
   • The planet gears mesh with the ring gear, transferring the rotational motion.
3. Output Rotation:
   • The carrier, which supports the planet gears, rotates and transmits the power to the output shaft.
   • The output shaft is positioned at a 90-degree angle to the input shaft, effectively changing the direction of the rotational motion.

Advantages of Right Angle Planetary Gearboxes

1. Compact Design:
   • The right angle configuration allows for a more compact design, making it suitable for applications where space is limited.
   • This is particularly beneficial in industrial machinery, robotics, and automation systems.
2. High Torque Output:
   • The distribution of load across multiple planet gears results in high torque output and increased load-carrying capacity.
   • This makes it ideal for heavy-duty applications such as construction machinery and wind turbines.
3. Efficient Power Transmission:
   • The planetary gear system minimizes power loss and maximizes efficiency, ensuring smooth and reliable operation.
   • This is crucial in applications where energy efficiency is a priority.
4. Versatility:
   • The right angle planetary gearbox can be configured to achieve a wide range of gear ratios, making it adaptable to various application requirements.
   • It can be used in industries such as automotive, aerospace, renewable energy, and manufacturing.
5. Durability:
   • High-quality materials and advanced manufacturing processes ensure long-lasting performance and minimal maintenance.
   • This is essential for applications that require continuous and reliable operation.

Applications

Right angle planetary gearboxes are widely used in a variety of industries and applications, including:

• Construction Machinery:
  • Excavators, bulldozers, and cranes benefit from the high torque and compact design of right angle planetary gearboxes.
• Automotive Industry:
  • Used in steering systems and differential gears to provide smooth and efficient power transmission.
• Renewable Energy:
  • Wind turbines and solar tracking systems rely on right angle planetary gearboxes for reliable and efficient energy conversion.
• Agricultural Equipment:
  • Tractors and harvesters use these gearboxes to handle heavy loads and operate in challenging environments.
• Robotics and Automation:
  • Industrial robots and automated machinery require precise and efficient power transmission, which right angle planetary gearboxes provide.

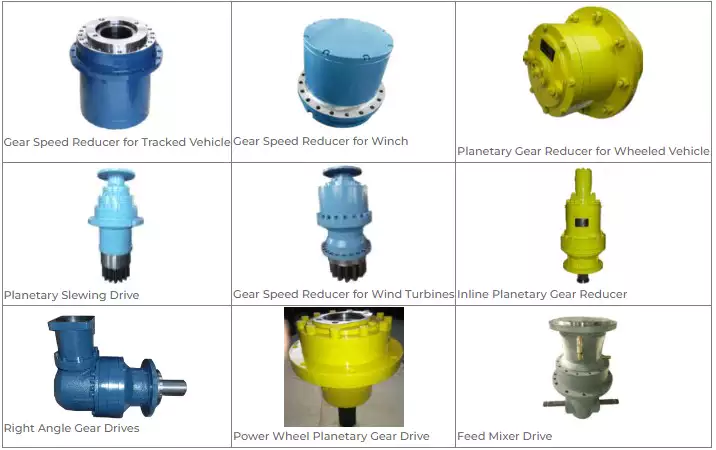

Introducing EVER-POWER Planetary Gear Reducer

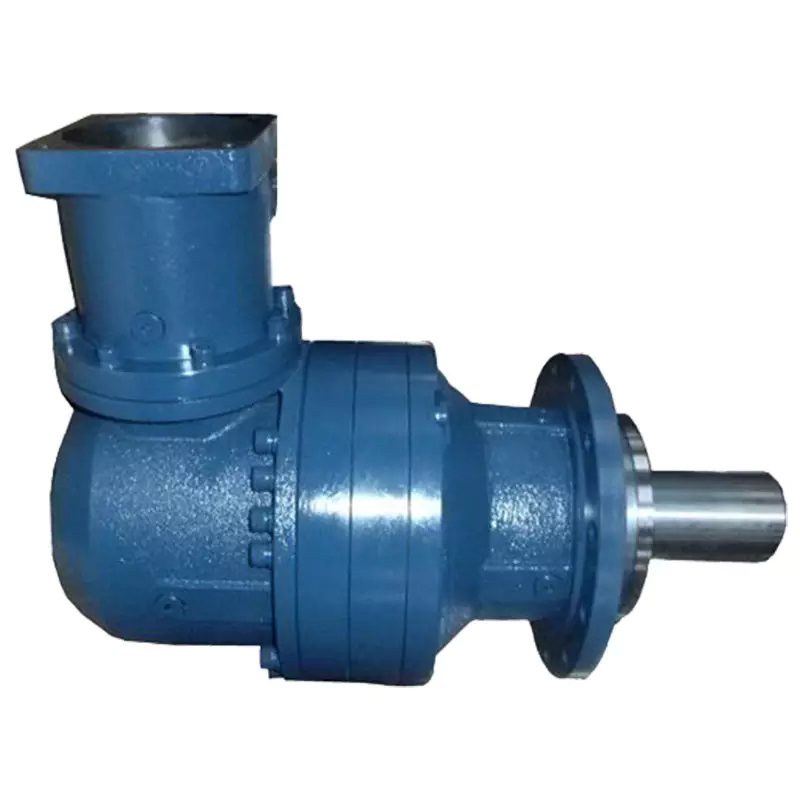

At EVER-POWER Planetary Gearbox Factory, we are dedicated to providing high-quality and reliable planetary gear reducers. Our right angle planetary gearboxes are designed to meet the most demanding industrial requirements and offer the following features:

1. Precision Engineering:
   • Manufactured using state-of-the-art CNC machines and advanced manufacturing techniques to ensure high precision and reliability.
2. High Torque Output:
   • Capable of handling high loads and providing consistent performance in heavy-duty applications.
3. Compact and Efficient:
   • Designed to maximize space efficiency while maintaining high power transmission efficiency.
4. Customizable Solutions:
   • Available in a variety of configurations to suit specific application needs, including custom designs for unique requirements.
5. Long Service Life:
   • Constructed from high-quality materials and rigorously tested to ensure durability and long-lasting performance.
6. ISO Certified:
   • Our products are ISO 9001:2000 certified, ensuring compliance with international quality standards.
7. Global Reach:
   • Exported to numerous regions around the world, including Southeast Asia, the Middle East, Germany, the United States, Canada, Spain, Australia, Turkey, and India.

Contact Us

If you are interested in our right angle planetary gearboxes or have any questions, please do not hesitate to contact us. We are committed to providing exceptional products and services to meet your needs.
