96% High Efficiency Precision Planetary Gearbox



The reducer is generally used for low-speed and high-torque transmission equipment. The motor, internal combustion engine or other high-speed running power is used to achieve the purpose of deceleration by meshing with the large gear on the output shaft through a gear with a small number of teeth on the input shaft of the reducer. The reducer will also have several pairs of gears with the same principle to achieve the ideal reduction effect. The ratio of the number of teeth of the large and small gears is the transmission ratio.

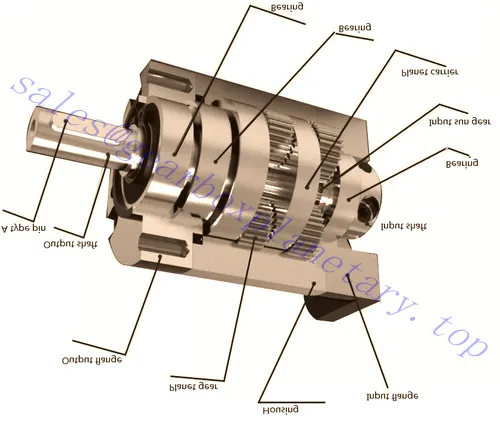

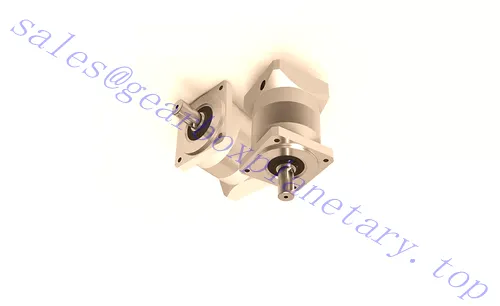

A planetary gearbox is a gearbox with the input shaft and the output shaft aligned. A planetary gearbox is used to transfer the largest torque in the most compact form (known as torque density).

The bicycle’s acceleration hub is a great example of a planet-wheel mechanism: Have you ever wondered how you can get so much power and capabilities in such a little hub? For a three-speed hub, a one-stage planetary gear system is used, for a five-speed hub a 2-stage. Each planet gear system has a reduction state, a direct coupling and an acceleration mode.

Whoever invented the planetary gearbox is not known, but was functionally described by Leonardo da Vinci in 1490 and has been used for centuries.

Key Features Planetary Gearbox
18 Frame Sizes
Gear Reducer Ratios
1 Stage Gear Reducer 3.48:1~7.2:1
2 stage Gear Reducer 12.1:1~51.8:1
3 stage Gear Reducer 63:1~373:1
4 stage Gear Reducer 403:1~2687:1
Gear Reducer Efficiency
1 Stage Gear Reducer 97%
2 stage Gear Reducer 95%
3 stage Gear Reducer 92%
4 stage Gear Reducer 90%
Gearbox Torque Range: 576~447360 Nm
Mechanical Rating Up To 380 Kw
Layout Of Axis: Right Angle And Parallel Shaft
Ideal For High Reduction Ratio, Inline Installation And Overhung Load
Wide Reduction Ratio, High Torque and Compact Size

Benefits Planetary Gearbox
Wide Reduction Ratios – Due to the design characteristics planetary gearboxes can achieve high efficiency and wide ratio in multiple stage combination.
Compact Design – Small Size but with high torque output due to the load sharing of the planet gears.
High Efficiency Output – Our planetary gears offer output efficiencies of up to 97%
Different Lubrication Options – Within the planetary gear series either oil or grease may be used to deliver lubrication throughout the system.
